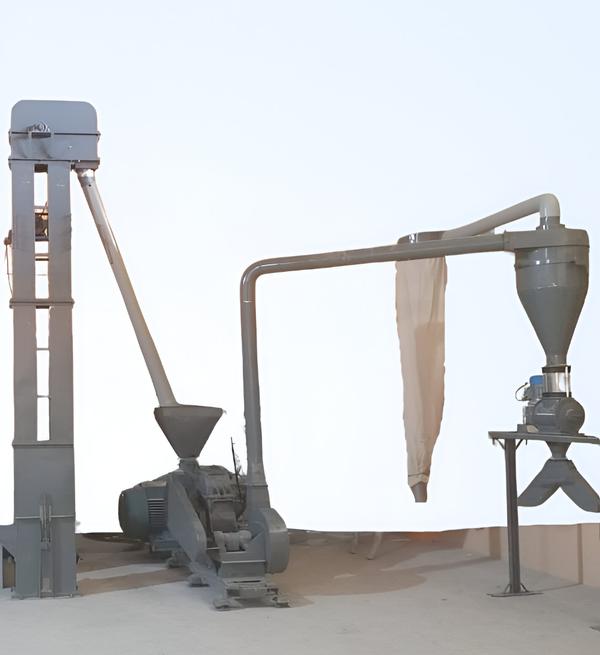

A hammer mill is a high-speed machine that crushes and pulverizes materials like grains, chemicals, or biomass into fine powders by repeatedly impacting them with swinging hammers inside a rotating drum, with particle size controlled by screens or air separation, making it versatile for primary, secondary, or tertiary crushing in industries from food processing to mining. Key Components: Rotor & Hammers: A central shaft with hinged or fixed hammers rotates at high speeds (thousands of RPM). Grinding Chamber/Casing: A strong steel drum containing the hammers and material, often with a screen at the bottom. Feed Hopper: Introduces raw material into the chamber. Screen/Sieve: A perforated metal sheet that controls the final particle size; only fine enough material passes through. Discharge: Mechanism to remove processed material. How it Works: Feeding: Material enters the grinding chamber. Impact: High-speed hammers strike the material, shattering it through impact and shearing forces. Sizing: Ground particles are forced through the screen (or separated by air in screenless types). Discharge: Uniformly sized particles exit the machine. Types: Horizontal & Vertical Shaft: Based on the rotor's orientation. Screened & Screenless: Screenless types use air flow for separation, often more efficient. Applications: Agriculture: Grinding grains, feed, biomass. Food: Processing spices, cereals. Pharmaceuticals: Size reduction for tablets. Mining & Chemical: Crushing minerals, charcoal. Advantages: High capacity and reduction ratio. Cost-effective and energy-efficient. Handles tough, brittle, or fibrous materials. Simple to operate, clean, and maintain. MODEL MOTOT PRODUCTION 5X31 20-30HP 200-300 KG/HR 8X31 40-60HP 400-600 KG/HR 12X31 60-100HP 600-1000KG/HR
