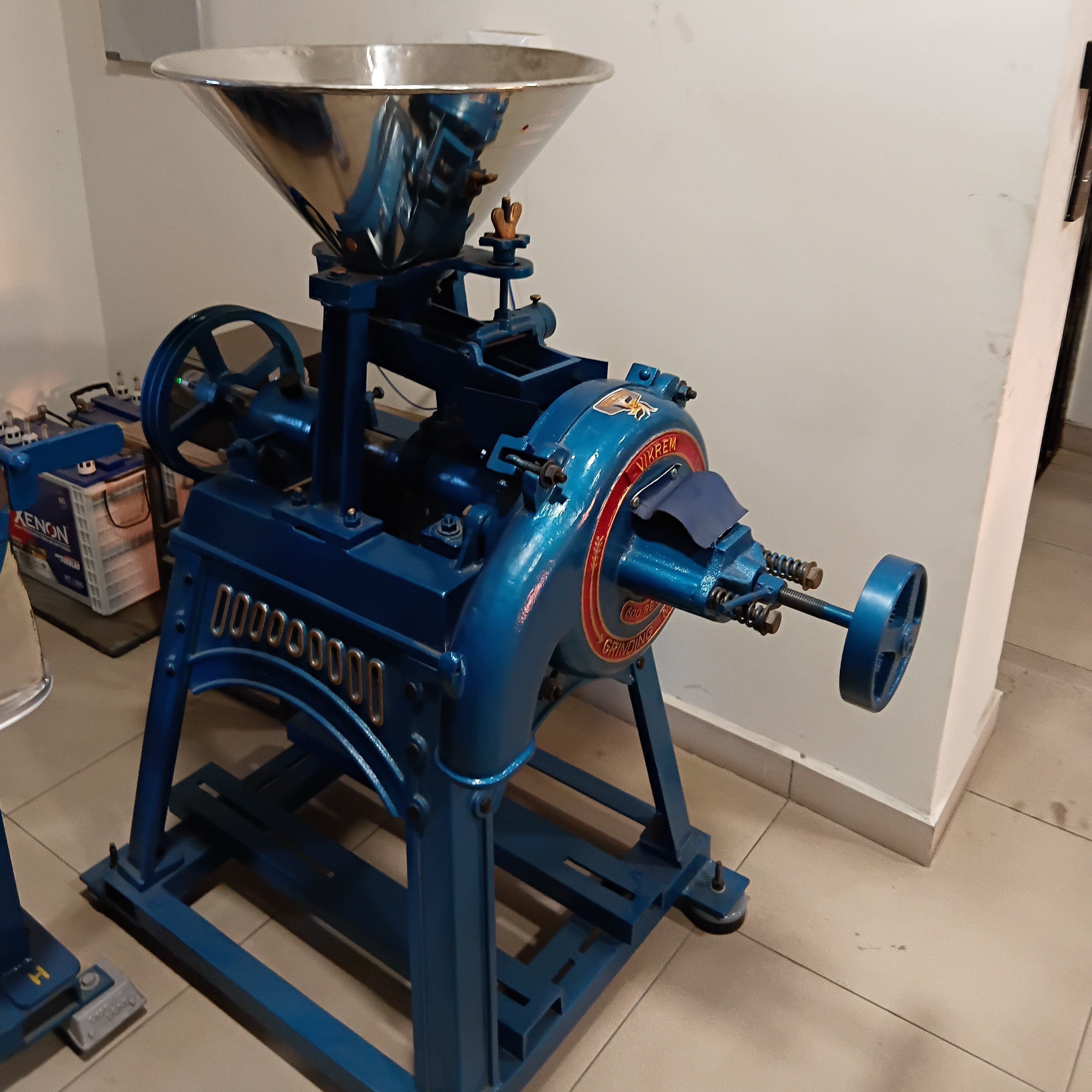

A Chilly Plate Mill Machine is a type of spice grinding machine (pulverizer) that uses a “plate mill” mechanism (fixed and movable grinding plates) to process dried chilies and other spices into a fine powder. It is a popular choice for commercial and industrial applications due to its efficiency and ability to control powder fineness.
Mechanism and Operation
The machine's working principle relies on the relative motion between a stationary (fixed) disc and a rotating (movable) disc, both of which have specific tooth patterns or rough surfaces.
Feeding: Dried chilies are fed into a hopper and then typically a grinding chamber.
Grinding: The material undergoes comprehensive actions, including impact by the teeth, friction, and impact between the raw materials themselves. This breaks down the chilies into smaller particles.
Sieving/Separation: The ground material passes through a screen or sieve with a specific mesh size. The desired fine powder passes through, while coarser material remains for further grinding or is collected separately.
Collection: Integrated systems often use a cyclone separator and dust collector to manage dust and ensure a clean, safe, and efficient material collection process.
Key Features
Grinding Plates: The primary feature, these plates are crucial for the grinding action. High-quality, durable materials like stainless steel or hardened cast iron are often used.
Adjustable Fineness: Different mesh sieves or adjustable plate spacing allow operators to control the final texture and fineness of the chili powder.
Material of Construction: Typically made with food-grade stainless steel (SS304 or SS316) for hygiene, corrosion resistance, and longevity, meeting food safety standards.
Heavy-Duty Motor: A powerful motor (ranging from 2 HP for mini-machines to 20+ HP for industrial plants) ensures continuous operation without overheating, vital for bulk production.
Dust Control: Modern machines often incorporate dust-free operation features, such as cyclone separators or dust collectors, for a cleaner working environment.
Low Temperature Grinding (Optional): Some advanced systems utilize pneumatic conveying or heat exchangers to maintain low temperatures during grinding, which helps preserve the chili's natural color, flavor, and moisture content.
Applications
Chilly plate mill machines are widely used in the food processing industry, including:
Spice manufacturing units
Commercial kitchens and restaurants
Small businesses producing their own spice blends
Agro-based small enterprises
MODEL MOTOR CAPACITY
8'' 2HP 7KG/HR
10'' 3HP 10KG/HR
12''BULLET 7.5HP 25KG/HR
